The NITRO Z21 Elite takes your fishing experience to a new technological level with the Z-Touch Command Center at the console. A Lowrance HDS LIVE 16 fills the face of the console, allowing 100% digital control of nearly all boat systems and eliminating the need for analog gauges and switches. But for your peace of mind, there’s a hidden backup manual switch panel, too. The HDS LIVE 16 is NMEA-networked to an HDS LIVE 12 at the bow, and individual transducers give a multiple viewing options for the underwater landscape below. The Z21 Elite also includes a 36V Ghost Trolling Motor, dual 8′ Power-Poles, our exclusive Z-Core seating system with Force Flex suspension and power lumbar support, plus a number of other tournament-level upgrades. And it rides proudly on a factory-matched tandem-axle trailer with custom wheels and GALVASHIELD Impact corrosion and chip protection.
The NITRO Z21 Elite LX is a completely loaded bass boat! It has remote start, trim, a first catch system, a 16″ in-dash Lowrance HDS with structure scan, side scan, and active target, and a 12″ in-dash Lowrance HDS with structure scan, side scan, and active target.
Ghost 36V with 3 in 1 transducer and Active Target
Comes with a new four bank charger for either LiFePO4 or Cell Batteries

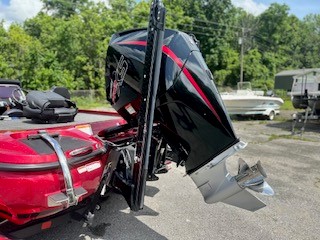

Low Hours Mercury 250 Pro Xs
SPECS
Draft: 1 ft. 4 in.
Beam: 7 ft. 11 in.
Fuel tank capacity: 55
Standard features:
Specs
Length 21’2″
Beam 7’11”
Bottom width 6’2″
Max. recommended HP 300 HP
Fuel capacity 55 gal.
Max. person capacity 4 persons
Max. person weight 825 lbs.
Max. person, motor & gear weight 1800 lbs.
Interior depth 18.5″
Transom height 22.5″
Deadrise 16 degrees
Draft 16″
Average dry weight 2150 lbs.
Average package weight 4050 lbs.
Package height 6’10”
Package width 8’6″
Towing length 27’11”
Storage length 24’4″
Elite LX

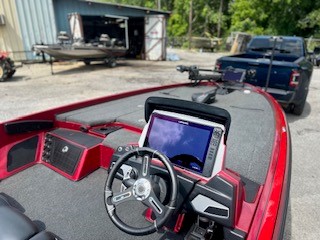

Z-TOUCH Command Center w/digital control of boat functions.
Bow Lowrance HDS LIVE 12 gimbal-mounted fishfinder w/downscan transducer on trolling motor.
Console Lowrance HDS LIVE 16 flush-mounted fishfinder w/HD transducer Active Target, and 3 in 1 Transducer, (Also on trolling motor).
2 Power-Pole 8′ (2.44 m) Blade Edition shallow-water anchors.
Ghost 36V, Trolling Motor, spotlock, Active Target
NMEA Ethernet networking between fishfinders & trolling motor.
Front-access console storage compartment w/removable tray for wiring access.
Power-adjust pneumatic lumbar support for driver’s seat.
T-H Marine G-Force Conservation livewell culling system.
Factory-applied keel protector.
2 automatic bilge pumps.
2 oxygen generators.
Hot Foot throttle.
Pro-Trim lever.
4-bank, 40-amp battery charger.
1 extra trolling battery.
Retractable transom trailer tie downs.
Comfort, Convenience & Peace of Mind
NMMA certified
Flotation meets or exceeds NMMA & U.S. Coast Guard requirements
EPA-compliant fuel system
Anti-fatigue, padded comfort bow deck
Non-skid mats bow & stern
Spare prop holder
5 drink holders
4 stainless steel pull-up cleats
Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor
4 grab handles (1 at each seat)
Built-in tournament ruler & holder
Fire extinguisher
Horn
Paddle
Livewell Systems
2 aft 19-gal. (71.92 L) insulated GUARDIAN livewells w/digital timers
750 GPH (2,839.06 LPH) livewell recirculation/pump-out system
500 GPH (1,892.71 LPH) aerator/fill pump
Oxygen generator in each livewell
Dual remote drain controls
Rotomolded w/rounded corners
Trolling Motor
Trolling motor pedal recess
Console
Custom-molded modular console
NEW touchscreen switch panel w/1-touch boat controls including First Fish, Nite Mode, master power, trim, lighting, bilge, livewells & more
NEW key fob remote w/First Fish, Nite Mode, master power on/off & trim
First Fish feature fills & recirculates livewell w/1 touch for stress-free livewell prep
Hydraulic steering w/tilt
Ready to accept optional removable port console
LED courtesy light
Below-console RAM X-Grip phone holder & 12V outlet
Interior
45-sq.-ft., (4.2-sq.-m) anti-fatigue, padded bow deck for comfort & mobility
Bike seat w/hydraulic pedestal
Folding fishing seat w/composite frame & hydraulic pedestal
Z-CORE seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats
Adjustable sliding driver & passenger seats w/removable center seat cushion
Bow port & starboard rod hold-down straps
Molded-in drainage channels around bow storage compartments
Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8′ (2.44 m)
Tapered rod tubes in port rod locker to protect rod tips
Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM
2 large, lockable bow center storage lockers w/lift assists
Bow center magnetic under-lid lure organizer
Step to bow deck w/86-qt. (81.39 L) insulated cooler, removable trash receptacle & snap-in sandwich tray
Partner rod ramp w/rod handle organizer & hold-down strap
Port below-console pull-out storage drawer
Footrest w/non-skid mat under console(s)
Designated net storage behind seating
2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
Lift-out tool/rope storage tray in rigging compartment
Insulated aluminum lids w/welded corners
24-oz. (.68 kg) plush, marine-grade cut pile carpet on deck & floor
Stainless steel lockable latches
Performance
16 degrees variable deadrise hull
RAPID PLANING SYSTEM (RPS) for quicker holeshots & maximized speed
12″ (30.48 cm) adjustable jack plate
Rigging tube for organized wiring & abrasion resistance

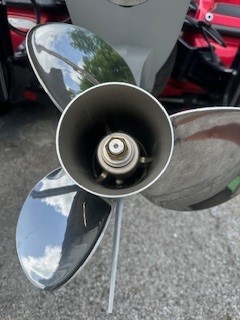

Stainless steel propeller
Construction & Exterior
100% composite deck core w/superior thermal stability & strength-to-weight ratio
Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2″ (5.08 cm)
Gelcoated stringer/liner system
Foam-filled hull for optimal buoyancy & safety
Full-width fiberglass-encapsulated composite transom
Low-profile gunnels to maximize deck size & for easier casting
Electrical
Bow panel w/trolling motor receptacle, anchor/light switch & trim switch
1,600 GPH (6,056.66 LPH) bilge pump
Automatic bilges
LED console courtesy light
Manual LED-lighted bow gear storage
Automatic LED-lighted port & starboard bow rod storage
Automotive-style labeled fuse panel w/cover
Interstate cranking battery
2 heavy-duty Interstate trolling batteries
6-gauge trolling motor wiring w/50-amp circuit breaker
E-Start emergency jump start system
Master power switch
Ventilation fan system in bow storage
Water/abrasion-resistant connectors

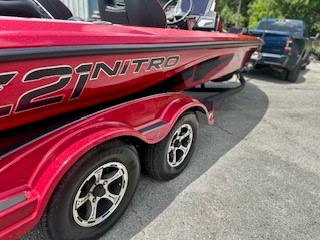

Trailer
Custom-fit, tandem-axle NITRO trailer powder-coated w/GALVASHIELD Impact corrosion & chip protection for improved durability
7-pin connector
14″ (35.56 cm) custom aluminum wheels w/radial tires
NEW surge disc brakes on both axles
No Touch Vortex hub lubrication system w/6-year, 100,000-mile (1,609.34 km) limited warranty
Spare tire carrier w/matching spare
All-welded rectangular GALVASHIELD frame
Space-saving swing-away tongue to reduce storage length
1,600-lb. (725.75 kg) swing-up locking jack w/swivel wheel
Heavy-duty winch w/nylon strap & bow safety strap
Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
Outboard motor support to reduce hull & transom stress while towing
Fiberglass fender design w/integrated back-up lights
Carpeted bunks & fender boards to protect hull
Submersible LED lights
Safety cables
